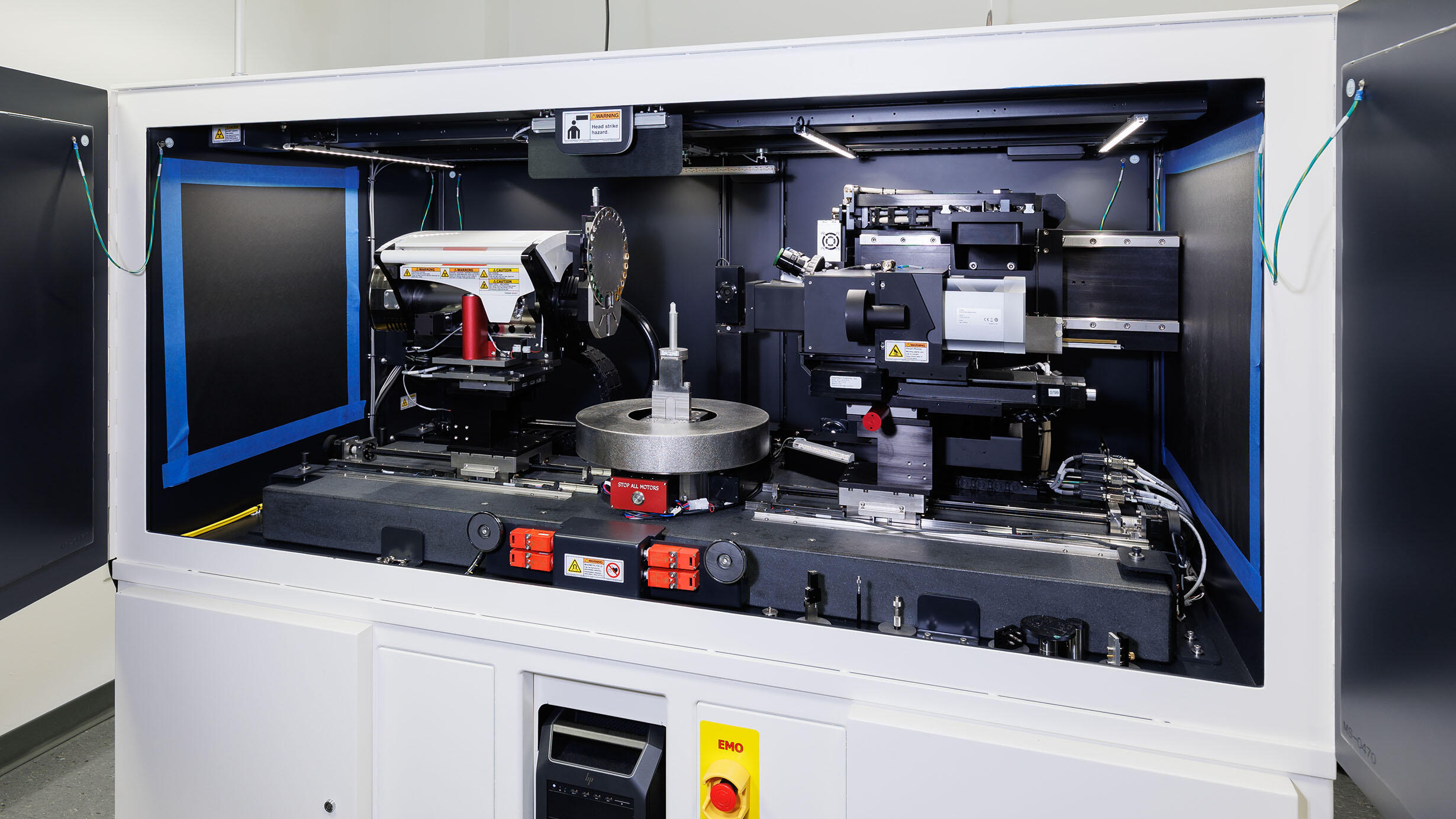

Zeiss Xradia 630 Versa

Daniel Kim/© AMNH

CONTACT US
Email: [email protected]
Open 9 am–5 pm, Mon–Fri

The Zeiss Xradia 630 Versa X-ray microscope (XRM) is the newest addition to the MIF.

The ZEISS Xradia Versa family breaks resolution performance barriers, delivers an intuitive user experience, and accelerates productivity for all with easy, guided workflows and higher throughout. Usage and User Responsibilities For use of our CT scanner, please first refer to the laboratory User Policy on our website, and contact staff to discuss your project before requesting time on our scheduling system.

Scan Data

The MIF currently houses a limited storage space that only allows the lab to hold on to scan data for a 7-day period. Within this 7-day period users are required to retrieve their data before it is transferred to the DTN. In many instances, this can be done on the same day that the user scans specimens. However, in other instances the user is required to schedule a "data reconstruction and retrieval" day in which they process and transfer data on to their or their departments storage device(s).

Technical Overview and Description

Zeiss Xradia 630 versa System Overview X-ray Source: The Xradia features one closed x-ray tube that produces high resolution scans at any energy level. Its full energy range is from 30 kV to 160 kV with a power range of 1W - 25W. It is a closed x ray tube, meaning that it has a longer lifespan and minimal maintenance. The source includes an automatic filter changer that contains filters for both low and high energy scanning.

Objective lenses and Detectors: The detectors for this instrument include a flat panel detector, as well as .4x, 4x, 20x, and 40x-P objective lenses. The detectors can be switched automatically within the navigating software. The detectors allow for up to 450nm resolution with the 40x-P lens. The flat panel captures x-rays at a height of 3000 pixels and 4500 pixel width while the objective lens capture at 3000 pixels by 3000 pixels.

Software

Sample Images: Zeiss Xradia 630 Versa

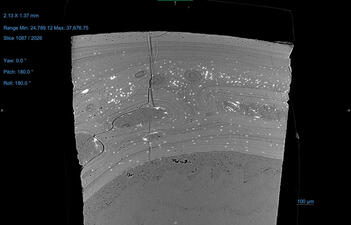

3D xray of femur with text and numbers indicate size, range min and max, and degrees of yaw, pitch, and roll.

Kulik_virtual_bone_histology_femur_ROI.jpg: Bone microstructure of the femur from an extinct reptile relative, revealing a complex vascular and cellular network. Large, ring-shaped spaces ('lifesavers') represent blood vessels, while smaller black and white flecks mark the locations of individual bone cells.
© Zoe Kulik

3D scan of maxilla toothrow with text and numbers that indicate size, range min and max, and degrees of yaw, pitch, and roll.

Kulik_maxilla_toothrow.PNG: Fossilized teeth and developing replacement teeth in the jaw of an early mammal relative that lived around 243 million years ago, alongside some of the first dinosaurs.
© Zoe Kulik

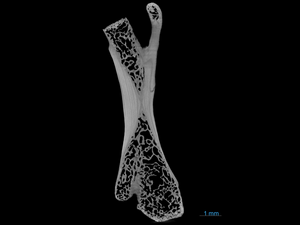

Captorhinus_femur_2.PNG: Longitudinal cross section of a fossilized femur from Captorhinus that lived approximately 288 million years ago.
© Zoe Kulik

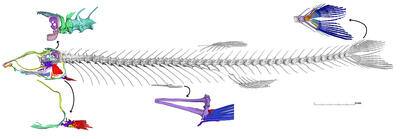

Lateral view of the complete skeleton of a Grasseichthys fish with images of closer views of the tail, and a section of vertebrae.

Diminutive Grasseichthys n.sp. (Gonorynchiformes: Kneriidae) from the Congo basin, with details of anatomy highlighted.
© Melanie Stiassny
