Instrumental Analysis

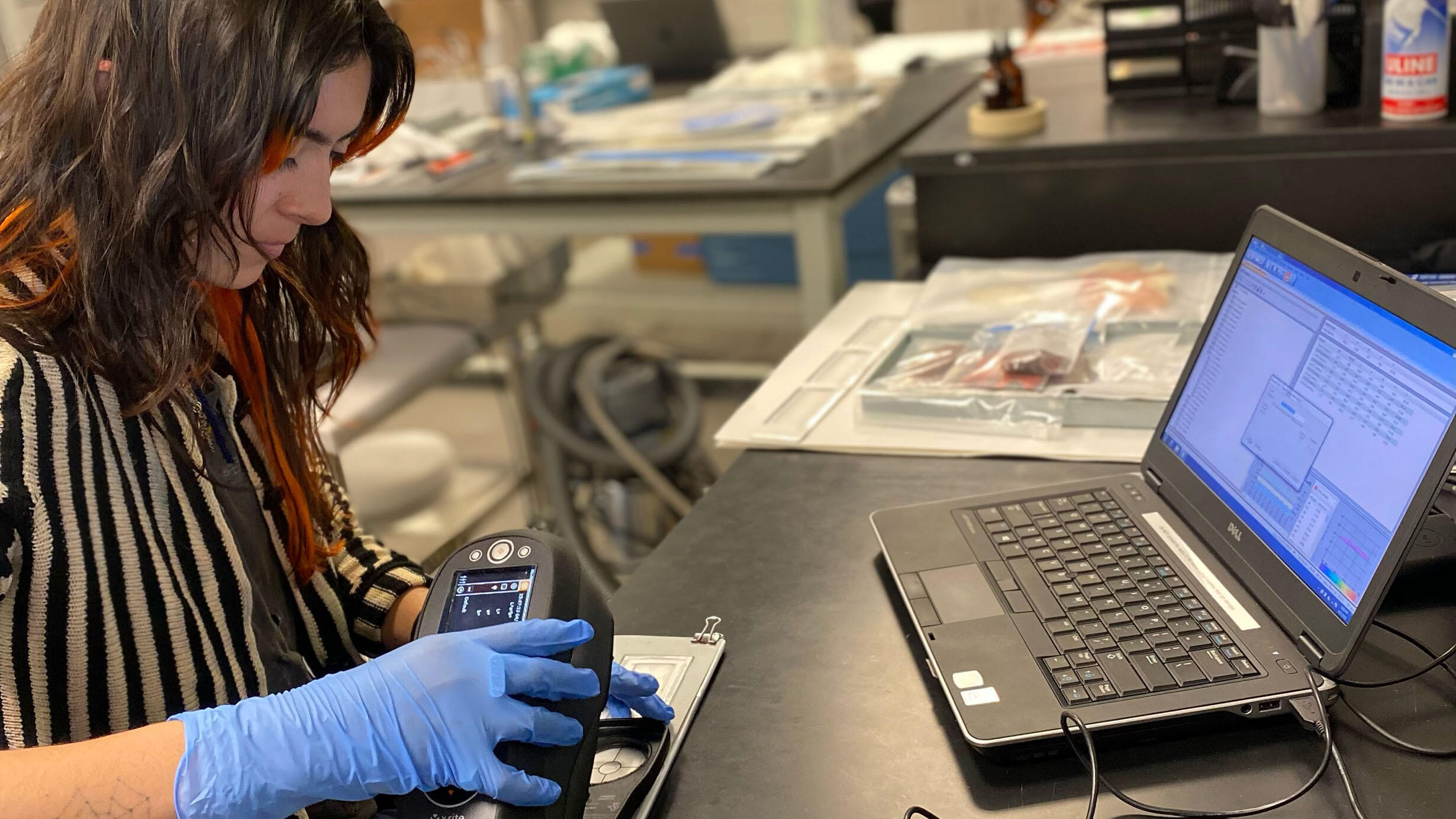

Scientist seated at a lab table holds a meter over a specimen and views the results on a laptop computer.

In the preservation context, instrumental analysis supports efforts to characterize materials found and used in collections. Analysis may be aimed at identifying adhesives, coatings, paints, etc. used in the production of a specimen or artifact; discerning compounds associated with use, deterioration, pest protection, or repair; or tracking physical or chemical change with time and exposure to the agents of deterioration.

FTIR Spectrometry

Fourier-Transform Infrared Spectroscopy (FTIR) measures the intensity of absorbed vs reflected/transmitted infrared radiation as it interacts with a liquid, solid, or gaseous sample. The IR source emits a beam that may be absorbed by some of the molecules of the sample but transmitted or reflected by others. At each wavelength, the transmitted or reflected infrared is measured by the detector, and then a mathematical algorithm is used to produce a spectrum. Peaks in the spectrum represent functional (-R) groups within the compound analyzed, so the peak pattern is characteristic of that compound. As a consequence, a spectrum from an unknown sample can be compared to known spectra in a reference library, and assuming it is represented in the library, an identification can be made.

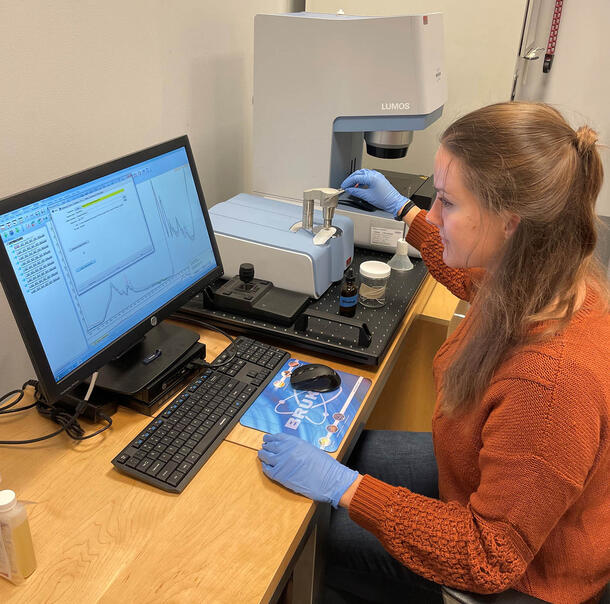

A woman sits at a desk in front of a computer. The screen shows colored spectra. She operates an FTIR spectrometer to her right.

The lab’s FTIR spectrometer, operated by Conservator Michaela Paulson.
L. Vilicich/© AMNH

Bruker Alpha FTIR-ATR

Science Conservation maintains a Bruker Alpha desktop FTIR-ATR for analysis of macro samples. It has a spectral range of 350-8,000cm-1, integrated interferometer, diode laser, an IR source, and a diamond Attenuated Total Reflectance (ATR) accessory. The ATR allows samples to be analyzed directly in a solid or liquid state without further preparation. The sample must be placed or pressed onto the ATR crystal for analysis. In some cases, this can be done non-destructively.

Bruker LUMOS FT-IR Microscope

For analysis of microscopic samples and cross-sections, the lab maintains a Bruker LUMOS Standalone FTIR Microscope. The LUMOS combines the capabilities of the FTIR with optical microscopy and an automated stage, allowing the user to analyze much smaller samples and perform chemical mapping across a sample. The microscope also has an integrated retractable ATR crystal that can be used on minute samples with extreme precision.

In addition to identifying unknowns, FTIR can be used to observe chemical changes in certain materials. This is done through a series of measurements representing different sample states. For example a sample might be analyzed in roughly the same location over time while it is exposed to light, or before and after treatment with a substance of special interest. Although this approach to analysis is not quantitative, there may be measurable change in peak positions, or in the proportional size of key peaks in the spectrum.

Learn more about how we are using FTIR analysis here.

Spectrophotometry

Spectrophotometry is a non-invasive analytical technique that measures visible light reflected by a material at individual wavelengths across the visible light spectrum. The result is a numerical measurement of color in a sample, which is useful when one needs to describe that color with specificity, and when monitoring color change (i.e. fading) over time. To measure color accurately, a spectrophotometer relies on a light source, a monochromator that isolates and directs the wavelengths, and a photodetector that measures reflected or transmitted radiation.

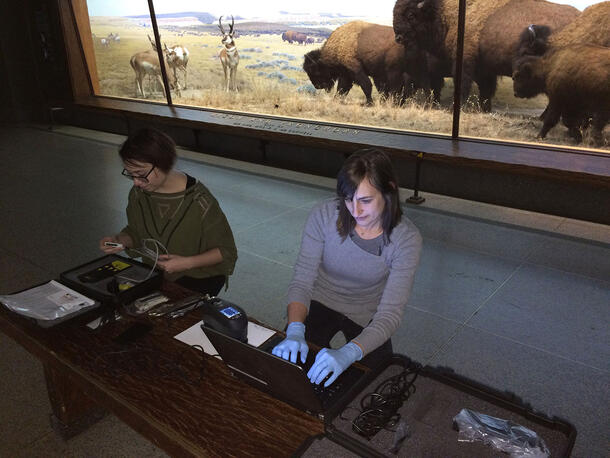

Two women working with instruments and computers on a bench in a museum hall, in front of a diorama of bison.

A portable spectrophotometer is used to collect color measurement from dye samples exposed in a discreet location inside the bison diorama in the Hall of North American Mammals.
J. Sybalsky/© AMNH

X-Rite Ci62 Spectrophotometer

The X-Rite Ci62 handheld spectrophotometer in the Science Conservation lab uses a tungsten light source, a grating monochromator that isolates and directs the wavelengths, and a blue-enhanced silicon photodiode photodetector that measures reflected radiation. Its integrated software can quickly execute the calculations needed to translate the measured reflectance spectrum into various colorimetric systems commonly used to characterize color change.

In our lab we have often utilized spectrophotometry in combination with accelerated aging to monitor how samples undergo changes in color with time. Learn more about how we are using spectrophotometry here.

Accelerated Aging Chamber

Accelerated aging chambers are used to rapidly reproduce in samples the damage that is naturally caused by light, temperature, and humidity in real environments over longer periods of time.

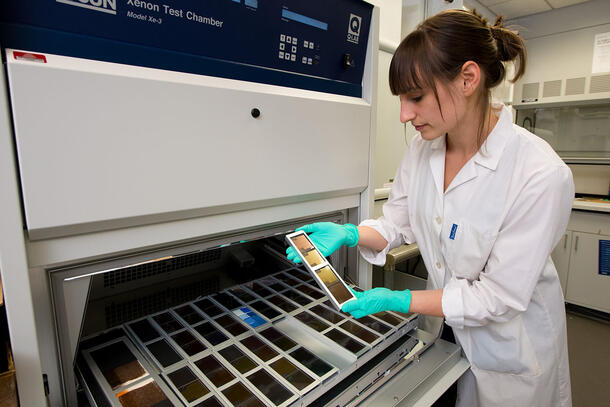

A woman in a lab coat and green gloves holding a dye sample in front of a tray of further samples. The tray is in the chamber of a large machine.

Conservator Fran Ritchie in front of the open sample compartment of the Q-SUN Xe-3 Xenon Test Chamber, as she examines dye samples after accelerated aging.
D. Finnin/© AMNH

Q-SUN Xe-3 Xenon Test Chamber

Science Conservation uses a Q-SUN Xe-3 Xenon Test Chamber similar in size to a refrigerator. It contains three powerful xenon arc lamps that expose samples to bright, full spectrum light inside of a compartment roughly the size of a microwave oven. The spectrum of light produced can be adjusted with the installation of filters above the sample compartment. Light output is measured in irradiance (W/m2) and can be controlled at either 340nm or 420nm depending on whether UV is excluded from the incident spectrum. The tester also maintains set points for relative humidity, chamber air temperature, and the temperature of a black panel placed inside the sample compartment.

Accelerated aging makes use of the principle that exposure to high intensity light for a short time can produce deterioration similar to that caused by low intensity light over a longer time. However, in order to correctly interpret one’s results, one must understand that for many reasons, accelerated aging does not occur in a way that is strictly reciprocal. In part this is due to the inability of any aging chamber to replicate every aspect of real-world exposures: wet/dry, thermal, or light/dark cycling, the spectrum of incident light, and the presence of air pollutants, dust, or adjacent materials may be impossible to simulate. This non-equivalence is also a consequence of thermal chemistry that unfolds alongside light damage but cannot easily be differentiated from it or accelerated proportionally.

Benchmarking addresses this problem. To create a benchmark, materials aged in real-time are used to define the extent of change taking place over a known duration. When a comparable degree of change is observed in the accelerated test, a correlation factor can be identified to be used in calculating an approximate relationship between accelerated and real-time aging. However, benchmarking has some obvious drawbacks, not the least of which is that a material that ages well may take many years to fail in a real-world exposure environment.

benchmarking-blue-wools-analysis-1400-900

For lightfastness testing, a common benchmarking standard is the Blue Wool scale, eight wool swatches dyed with different dyes that exhibit a range of known lightfastness behaviors. By including the Blue Wool scales in an accelerated light-aging test, one can make a comparison to the sample and provide a rough indication of how quickly it will be expected to fade in real time.

Learn more about how we are using accelerated aging here.
