An Evolving Atmosphere

Part of Hall of Planet Earth.

An Evolving Atmosphere AMNH/R.Mickens

About 1.7 billion years ago, banded iron formations — sedimentary rocks consisting of iron-rich layers alternating with iron-poor ones — stopped forming. By this time, photosynthesis had supplied enough oxygen  to entirely deplete the oceans of their iron. With no more iron available to remove the oxygen, the gas slowly began to accumulate in the atmosphere, increasing to perhaps 2 percent near the end of the Precambrian (560 million years ago), and eventually to its present level of 20 percent.

Rocks Reveal Conditions of Early Earth

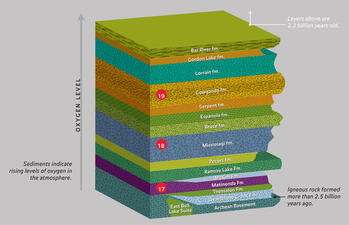

Clues to the conditions on the early Earth are found in rocks like the Huronian Supergroup, a set of sedimentary rock formations, up to 12 kilometers thick, laid down between 2.5 and 2.2 billion years ago. The rocks are exposed just north of Lake Huron, Canada. Many geologists believe that this sequence of rocks records a change from an oxygen-free to an oxygen-bearing atmosphere.

Huronian Supergroup_ILL

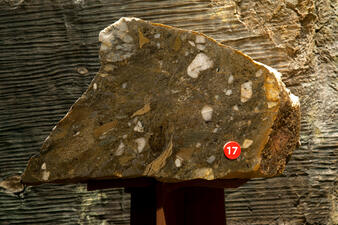

Pyrite-bearing Conglomerate
This quartz-pebble conglomerate is from one of the oldest layers of the Huronian Super-group. It formed as a gravel bar in a river, perhaps during a flood. The rock contains the heavy minerals pyrite (called “fool’s gold”) and uraninite (a uranium mineral), which were originally particles carried by the river. These minerals could not have survived in the presence of oxygen. They are part of the evidence for an oxygen-poor atmosphere 2.5 billion years ago. AMNH collection
AMNH/R.Mickens

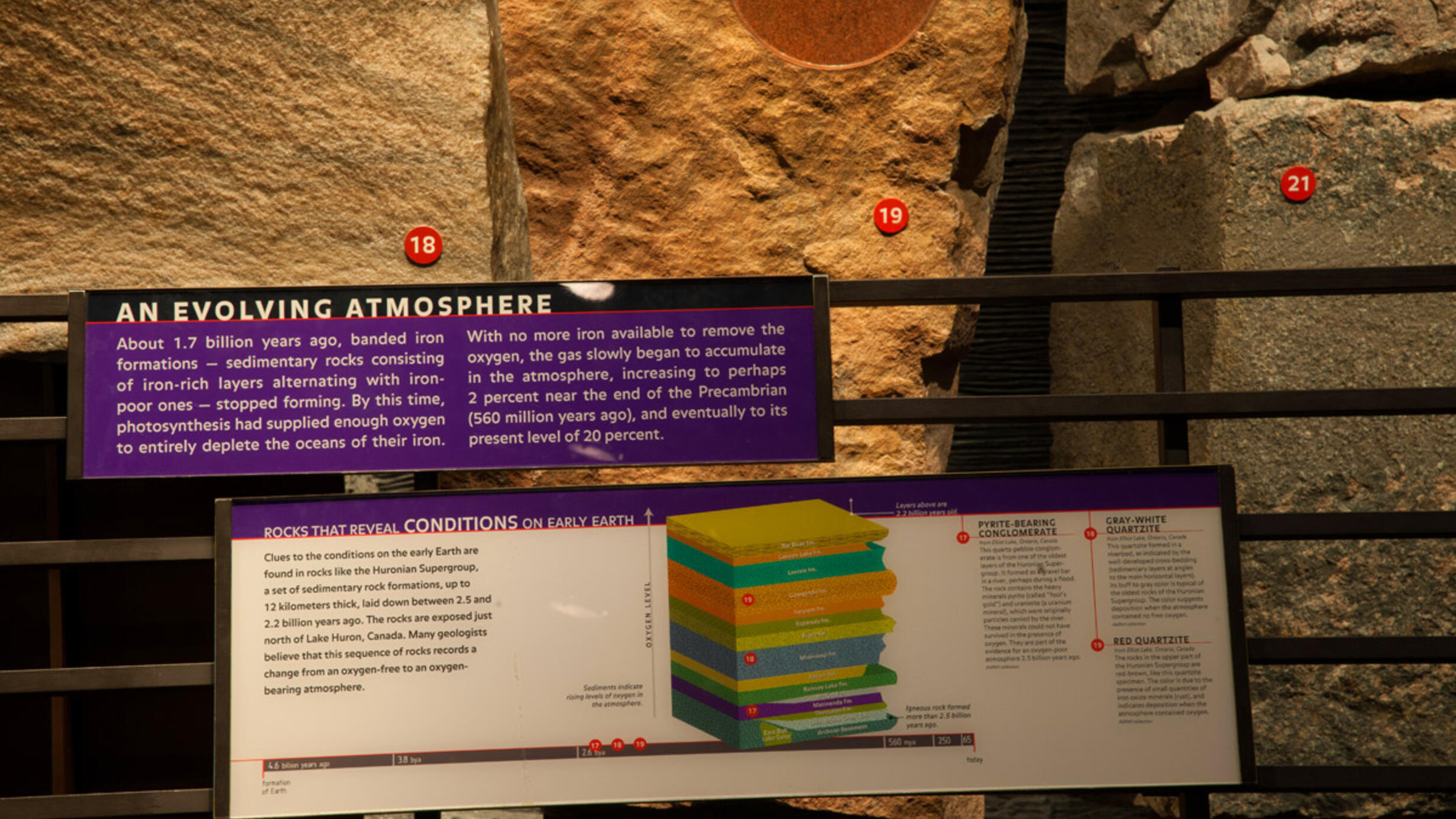

In the Hall of Planet Earth, several rock specimens and a text panel explaining the cessation of banded iron formations about 1.7 billion years ago, and rising oxygen levels.

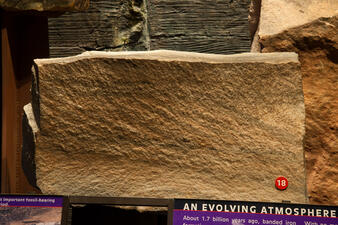

This quartzite formed in a riverbed, as indicated by the well-developed cross-bedding (sedimentary layers at angles to the main horizontal layers). Its buff to gray color is typical of the oldest rocks of the Huronian Supergroup. The color suggests deposition when the atmosphere contained no free oxygen.
AMNH/R.Mickens

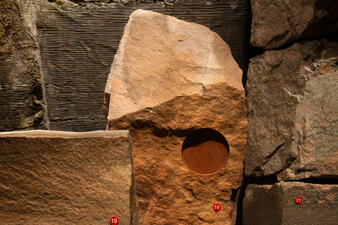

Red quartzite rock specimens from Hall of Planet Earth.
The rocks in the upper part of the Huronian Supergroup are red-brown, like this quartzite specimen. The color is due to the presence of small quantities of iron oxide minerals(rust), and indicates deposition when the atmosphere contained oxygen.
AMNH/R.Mickens

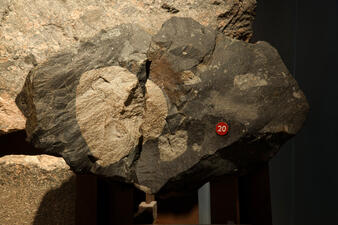

The Earliest Ice Ages
This 2.3-billion-year-old outcrop of the Bruce formation contains evidence of a very early Ice Age. It formed at the far end of a river delta. AMNH collection
AMNH/R.Mickens

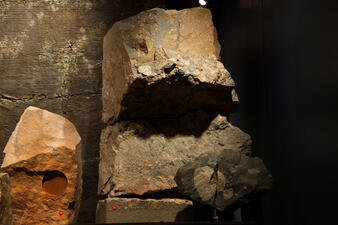

Debris From Old Glaciers
The broken-up rock fragments in this conglomerate from the Gowganda formation are not in contact with one another. This indicates that they were released by melting ice that was tumbling from a glacier’s front, and sank into sands in the water below. AMNH collection
AMNH/R.Mickens

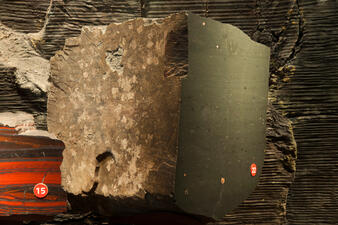

Outcrop of Glacial Sediments
Behind these samples is a cast of an outcrop from the Gowganda formation, made up of fine layers of sediment. Scattered within these layers are dropstones — pebbles trapped in and carried by icebergs. As the icebergs melted, they dropped their passive riders to the ocean floor. A good example can be seen in the sample at the center of this zone, in front of the cast of the outcrop. AMNH collection
AMNH/R.Mickens

In This Section

Rocks That Reveal Conditions of Early Earth

Clues to the conditions on the early Earth are found in rocks like the Huronian Supergroup, a set of sedimentary rock formations, up to 12 kilometers thick, laid down between 2.5 and 2.2 billion years ago. The rocks are exposed just north of Lake Huron, Canada. Many geologists believe that this sequence of rocks records a change from an oxygen-free to an oxygen-bearing atmosphere.

Pyrite-bearing conglomerate_HERO

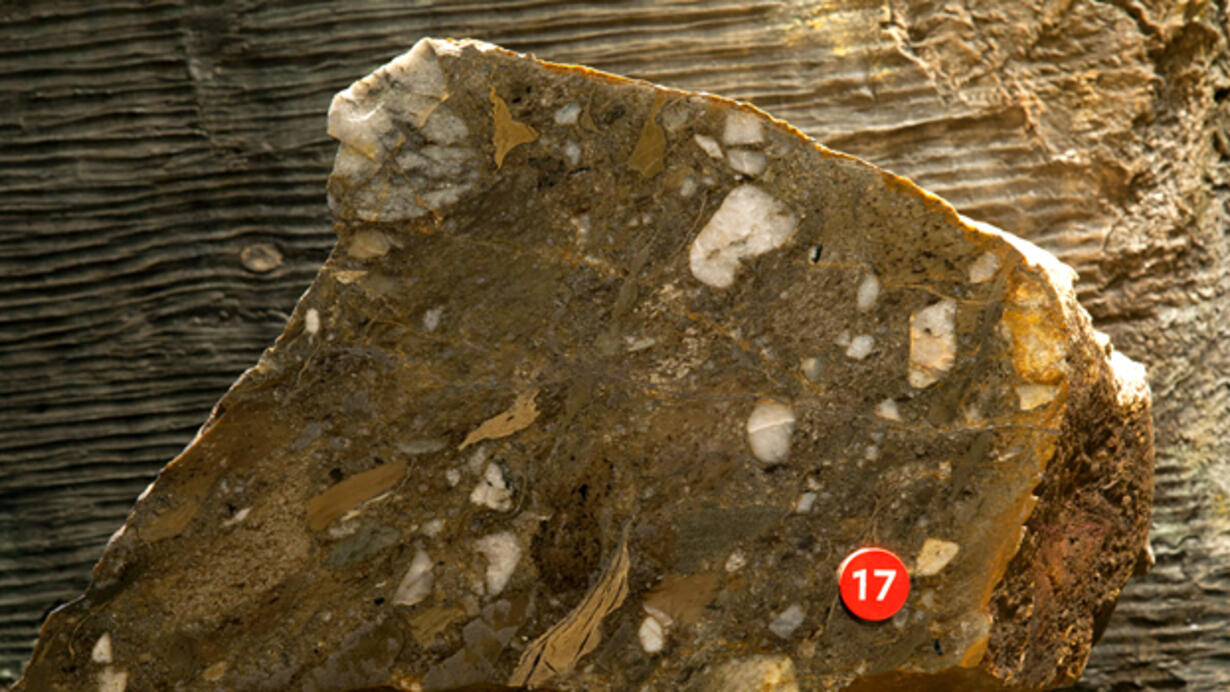

Pyrite-Bearing Conglomerate

This quartz-pebble conglomerate is from one of the oldest layers of the Huronian Super-group. It formed as a gravel bar in a river, perhaps during a flood. The rock contains the heavy minerals pyrite (called “fool’s gold”) and uraninite (a uranium mineral), which were originally particles carried by the river. These minerals could not have survived in the presence of oxygen. They are part of the evidence for an oxygen-poor atmosphere 2.5 billion years ago.

Gray-white quartz_HERO

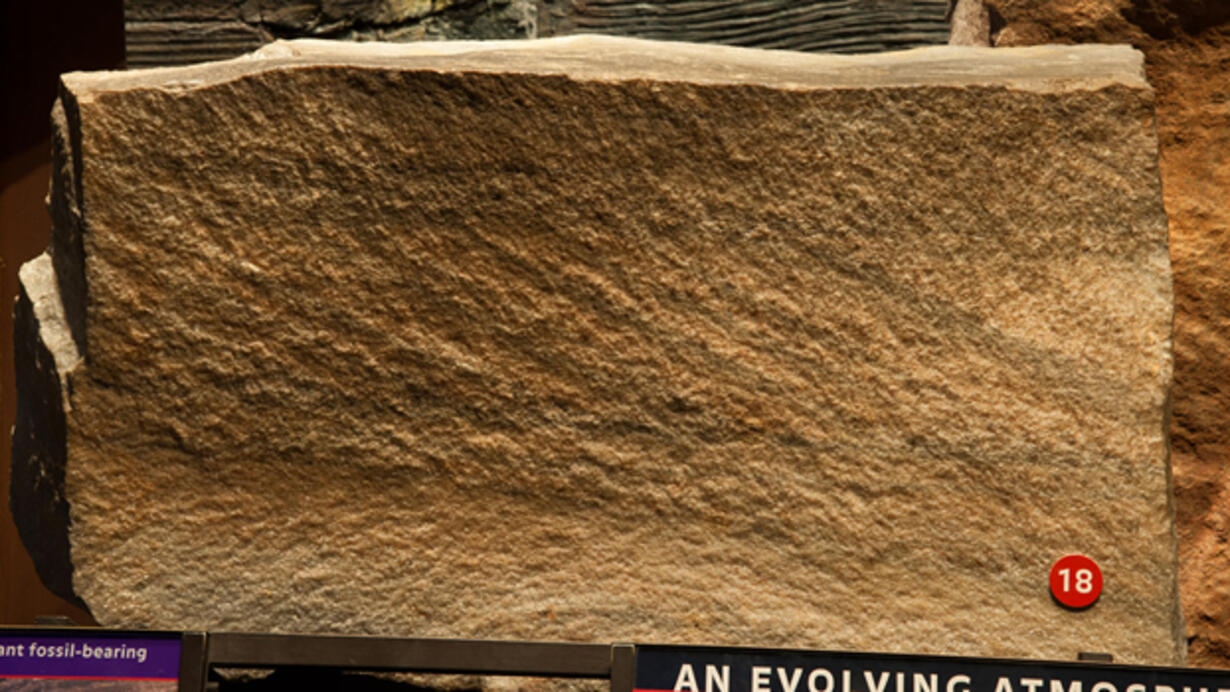

Gray-White Quartzite

This quartzite formed in a riverbed, as indicated by the well-developed cross-bedding (sedimentary layers at angles to the main horizontal layers). Its buff to gray color is typical of the oldest rocks of the Huronian Supergroup. The color suggests deposition when the atmosphere contained no free oxygen.

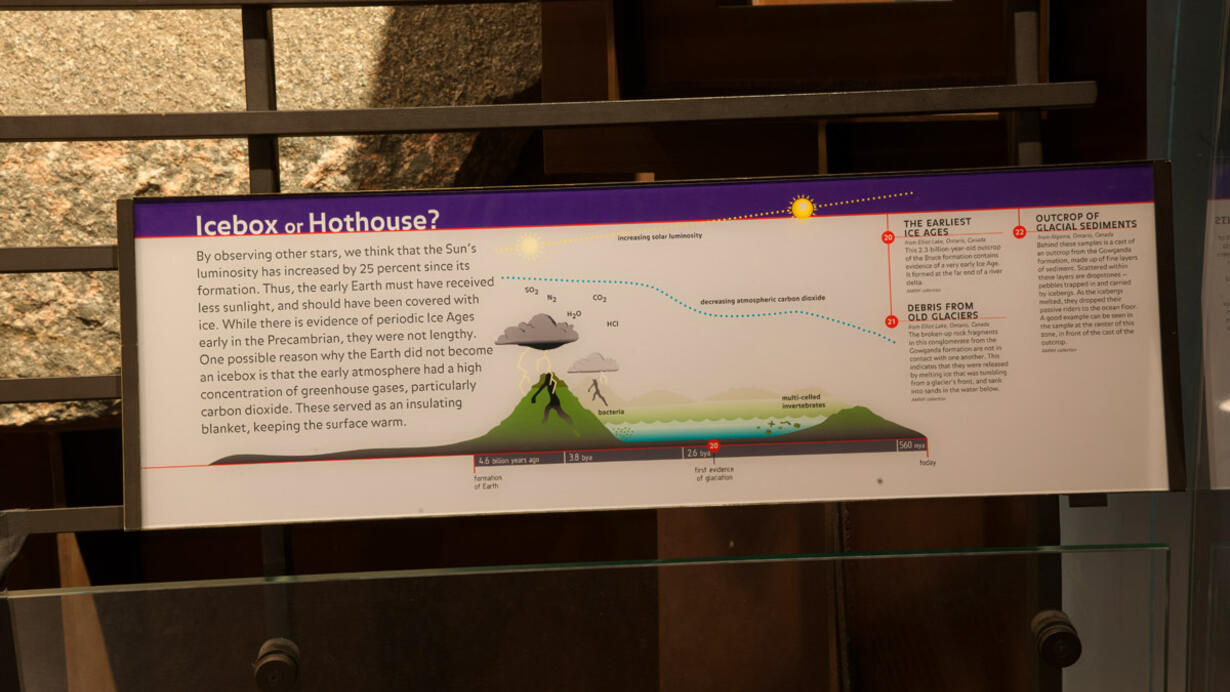

Icebox or Hothouse? AMNH/R.Mickens

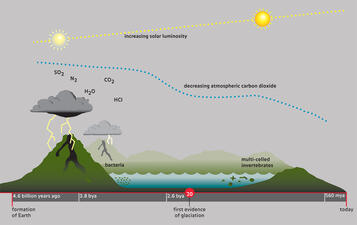

Icebox or Hothouse?

By observing other stars, we think that the Sun’s luminosity has increased by 25 percent since its formation. Thus, the early Earth must have received less sunlight, and should have been covered with ice. While there is evidence of periodic Ice Ages early in the Precambrian, they were not lengthy. One possible reason why the Earth did not become an icebox is that the early atmosphere had a high concentration of greenhouse gases, particularly carbon dioxide. These served as an insulating blanket, keeping the surface warm.

Solar luminosity and carbon dioxide_ILL
Red quartzite rock specimens from Hall of Planet Earth. AMNH/R.Mickens

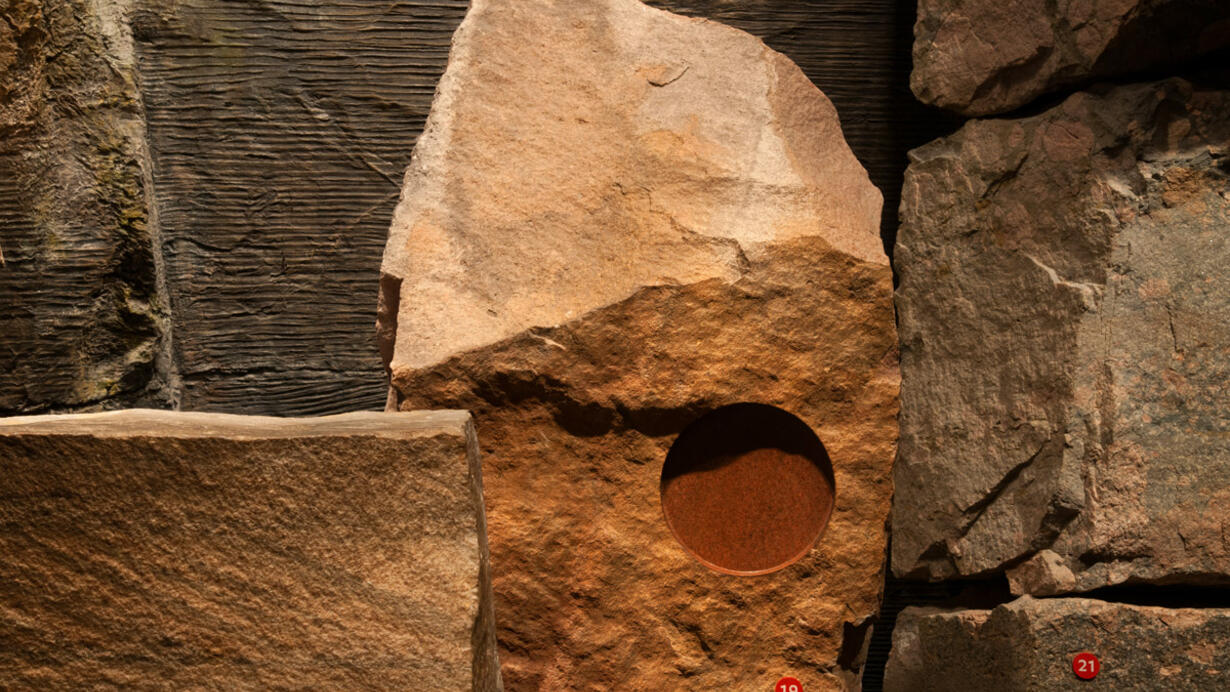

Red Quartzite

The rocks in the upper part of the Huronian Supergroup are red-brown, like this quartzite specimen. The color is due to the presence of small quantities of iron oxide minerals (rust), and indicates deposition when the atmosphere contained oxygen.
