Part of the Dinosaurs: Activities and Lesson Plans Curriculum Collection.
Students will interpret three trackways and use measurements and a formula to try to infer the relative speed of dinosaurs.
Students will:
Prior Knowledge

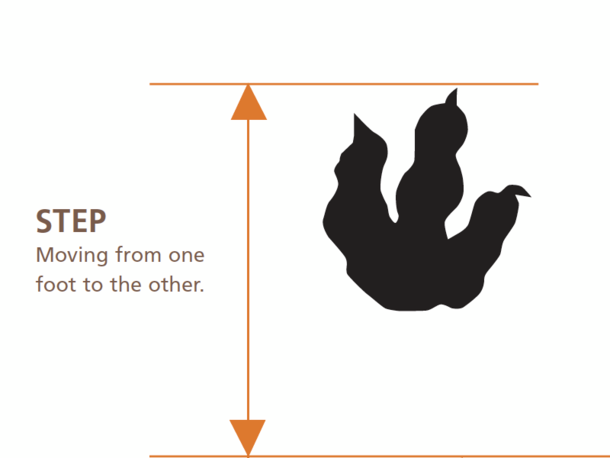

1. Tell students that scientists analyze trackways to determine whether a dinosaur was walking, trotting, or running. Explain that the speed is calculated using footprint length, hip height, and stride length. Display the stride length diagram. Point out the difference between a step and a stride: a step is moving from one foot to the other; a stride is two steps. To demonstrate, ask a volunteer to walk, trot, and then run across the room. Ask students to watch the |volunteer’s stride length as he/she walks, trots, and runs. Point out to students that when running, the body is at some point totally off the ground. A trot is in between a run and a walk. Ask: When was the stride length the shortest? (Answer: when the volunteer walked.) When was it the longest? (Answer: when the volunteer ran.)
2. Write footprint length, hip height, and stride length on the board. Ask students how they would determine footprint length. (Answer: measure the length of the footprint.) Remind students that in a fossil trackway, scientists only have footprint evidence (and no bones), so hip height must be calculated using a formula. In general, hip height can be calculated by multiplying the footprint length by 4. Stride length is the distance between two successive placements of the same foot. Students should measure between equal points of the foot, such as the tip of the middle toe.
3. Have students work with a partner. Distribute the Walking, Trotting, or Running? to each pair. Explain to students that the three trackways show the movements of three different dinosaurs. They are to calculate which dinosaur is walking, which is trotting, and which is running. Go over the calculation section with students. Give students 30 minutes to do the calculations.
4. When students have completed the assignment, discuss their answers with them. Extension: Students working in small groups can use the formula to calculate their own speeds over a given distance. This can be easily accomplished on an outdoor running track or in a dirt or sandy area—any place where footprints can be easily imprinted. Have students measure the length of their footprints, calculate their hip height, and then measure their stride length. Students can also use a stop watch to measure their speed, then evaluate the accuracy of their formula.
